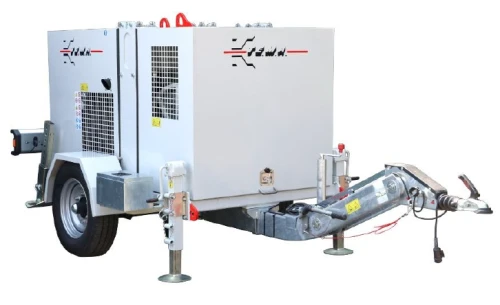

Wciągarka kablowa hydrauliczna 70 kN
towar niedostępny
dodaj do przechowalniOpis
PARAMETERS FEATURES AND OPTIONS
Maximum load 70 kN
Speed at maximum load 8 m/min
Maximum speed 55 m/min
Force at maximum speed 11 kN
250 mm winches
Maximum rope diameter 14 mm/800 m
Weight 18500 kg
ENGINE
Diesel (36.5 hp) 27 kW
Cooling : liquid
Start - electric
DIMENSIONS
Length 3200 mm
Height 1850 mm
Width 1950 mm
FEATURES & OPTIONS
Standard features:
- One hydraulic circuit with negative braking system
- Control panel equipped with LCD touch screen 7" display, which includes: settings for maximum pulling force and instant indication of force , counter, speed indicator Number of horsepower
- USB output for data recording
- Remote control c/w console 5 m cable
- Road kit 2500 kg (80 km/h)
- Levelled hook for lifting the winch
ADDITIONAL EQUIPMENT - OPTIONS
04-PW Wireless remote control
13-PW Motor heater to -30 °C
